Palisade Rails

Palisade Rails

Palisade rail is the horizontal pole between the palisade pales, the horizontal rails and vertical pales are fixed with the bolts and nuts. The material of palisade rail is same as the palisade posts and pales, then the rails will be punched with holes for the bolts and nuts. For general palisade gate and fence, two horizontal rails are enough to fix them, one for the top, the other for the bottom. If the palisade fence or the gate is too high, you need to add one rail for stability.

Specification:

  • Material: low carbon steel, mild steel, hot or cold rolled steel, stainless steel.
  • Surface treatment: hot-dipped galvanized or electric galvanized, PVC coated, powder coated.
  • Type: angle steel type.
  • Size: 40 × 40 mm, 45 × 45 mm, 50 × 50 mm, 60 × 60 mm.
  • Thickness: 3.5 - 6 mm.
  • Holes: 17 or 19 holes for palisade pales, 2 holes for the palisade posts.

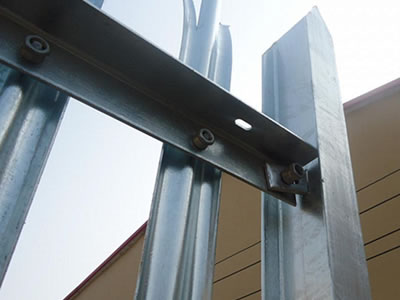

Angle type palisade rail fixed on the W section pales and the RSJ beam palisade post.
PR-1: For general fence, the angle palisade rails can be fixed with the pales and posts on one side.

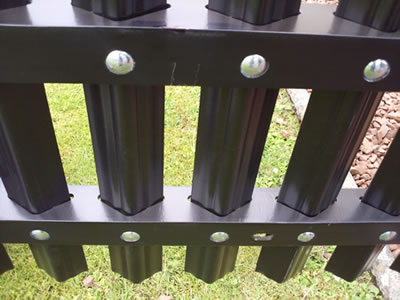

Two rails are fixed on the palisade pales and their surface is black PVC coated.
PR-2: For higher palisade fence, the palisade rails can be fixed with pales through two sides.

We also provide the palisade horizontal rails separately, you can choose suitable one for your designated fence or gate.

Package:
We also provide the palisade horizontal rails separately, you can choose suitable one for your designated fence or gate. The palisade horizontal rails can be packed with wooden pallet, plastic film, metal pallet or as your request.

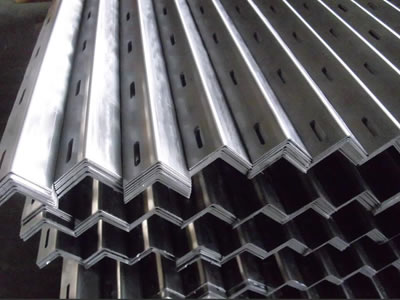

Many steel palisade rails are packaged with wooden pallet neatly.
PR-3: We can also provide palisade rails separately as your require.
