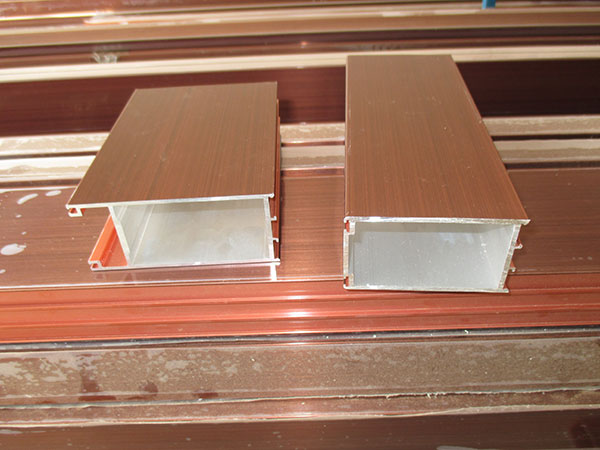

Copper Colour Aluminium Profile

Copper Aluminium Profile

Wide range of window/door profiles, surface treatment with anodization, powder coating, spraying, electrophoresis, etc.

Alloy Grade: normally 6061-6063, or upon request

Temper: T3, T4, T5, T6

Color: standard/customized colour,
Surface material: up to different national/regional standards
Length: 5.8~6.5m, or upon request

Additional Fabrication: 1. Windows and doors; 2. Drilling; 3. Bending; 4. Cutting; 5. Stamping.

Certificate
ISO 9001/ISO 14001

Moulding Fee
Free for producer's existing products;

Thermal Break

	Anodization	Electrophoresis	Mechanical Polishing	Powder Coating
Execution Standard	GB5273.2-2008	GB5237.3-2008		GB5237.4-2008
Film Grade	AA10, AA15, AA20	A Grade (anod min. 10µm/paint min. 12µm/compound Film min. 21µm; B Grade (anod min. 10µm/paint min. 7µm/compound Film min. 16µm;	According to Surface Pattern	Coating thickness min. 40µm, max. 120µm
Ingot Status	Industrial Standard YS67-93	Industrial Standard YS67-93	Industrial Standard YS67-93	Industrial Standard YS67-93
Chemical Composition	GB/T3190-96	GB/T3190-96	GB/T3190-96	GB/T3190-96
Surface Pattern	Matte, flat	Matte, flat	Anodized, electro	Highly/medium polished, flat
Features	Corrosion-proof, wear-resisting, shining and decorative	Strongly corrosion-proof against acid, alkaly and salt mist, with smooth surface and sharp colors	corrosion-proof, wear-resistent, high brightness	Flexible application, wide range of shade and color

Material Reference:

Material	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	<0.15	Rest
6005	0.6-0.9	0.35	<0.1	<0.1	0.40-0.6	<0.1	<0.1	<0.1	<0.15	Rest

Surface treatment
Power Coating Profile	As an environment-friendly high quality solvent-free decoration material,our power coated aluminium profile is characterized by excellent corrosion resistance,superior mechanical properties,impact resistance and fine flexibility,uncomparable by ordinary aluminum products,resistant to ultraviolet light,free from fading and influence from harsh weather,and lasting color and gloss
Wood Grain Profile	As a leading environment-friendly domestic building aluminium product,the wood-grain aluminium product contributes to modern home decoration.With all the advantages of centralized coated aluminium products,it has wood-like visual effects.It outweighs the wood products in terms of fireproof and thermal insulation and corrosion resistance.
Thermal-Break Profile	With sealed thermal and cold insulation performance,the thermal break aluminium product can significantly reduce energy consumption,in compliance with the requirements of the national energy-saving decree .It also has good characteristics to resist the erosion caused by harmful.
PVDF Profile	Our fluorocarbon coated aluminium profile is characterized by the smooth surface,uniform color,strongly resistant from high acid,alkali,impact and abrasion.It can withstand long-term strong ultraviolet radiation and acid erosion,free from coating chalking,fading and shedding.
