Palisade Post

Palisade Post

Palisade fencing post is also an important component of palisade fence as well as palisade fence pales. Palisade post is a stable structure of palisade fence, which is used to fixed the fence on the wall or the land. The fixing way of palisade fence post have bolt down type, concrete in type, wall mounting and land in type, you can choose a suitable one for your application.

Features:

  • Palisade post made of steel have good strength and high rigidity.
  • The post surface finished with powder coated, PVC coated and galvanized have good corrosion and wear resistance, so it can be used for a long time.
  • The palisade post is easy to install and remove.
  • The palisade post can provide higher security for many application sites.

Specification:

  • Material: low carbon steel, mild steel, hot or cold rolled steel, stainless steel.
  • Surface treatment: PVC coated, powder coated and hot-dipped galvanized or electric galvanized.
  • Post type: RSJ beam and square type.
  • Height:
    • bolt down type: 1.2 m - 3.6 m.
    • concrete in type: 1.8 m - 4.2 m and special size as your request.
  • Size:
    • RSJ beam: 55 mm × 100 mm, 68 mm × 100 mm, 74 mm × 125 mm.
    • square type: 60 mm × 60 mm, 75 mm × 75 mm, 80 mm × 80 mm, 100 mm × 100 mm.
  • Thickness: 1.6 mm, 2.4 mm, 3.0 mm.

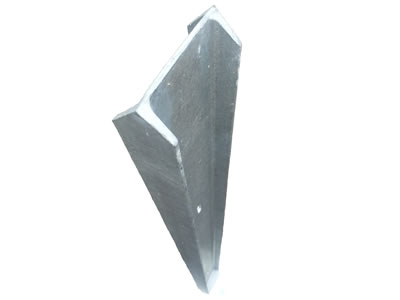

A steel palisade post, the type of the post is RSJ beam.
PPO-1: Palisade post have square and RSJ beam, you can choose a plastic or steel cap for square.

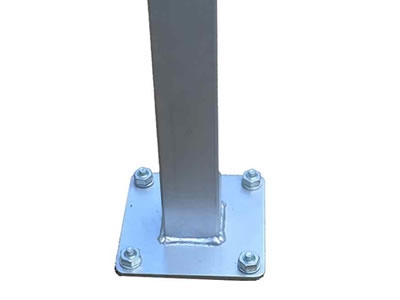

A steel base plate post, four bolts and nuts fixed on the plate.
PPO-2: Square or RSJ beam palisade post can be made with base plate to bolt on the ground.

Application:
The palisade fence can be used in schools, yard, garden, railway and highway for general security, it can also used in commercial or industrial site, office parking and airport for high security. What's more, the installation of palisade post is different in different places.

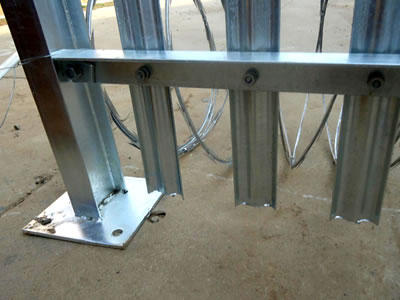

A corner of palisade fence, the RSJ palisade post with base plate stands on the ground and some wire meshes next to it.
PPO-3: The palisade post with base plate can be fixed on the concrete with bolts.

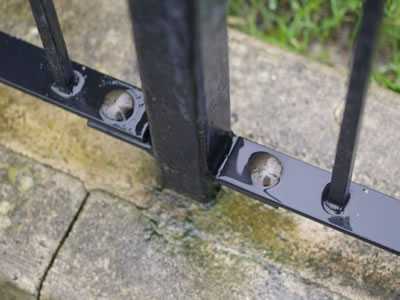

Black powder coated palisade fence with the square type post fixed in the concrete.
PPO-4: In road or highway, the installation of the palisade post can fix in the concrete.

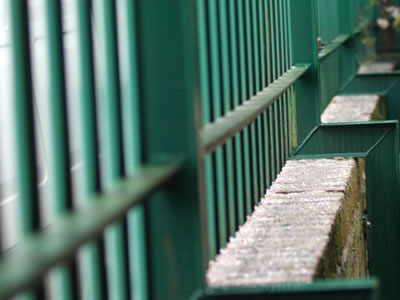

The palisade fence is green and the cranked post is fixed on the back of the wall.
PPO-5: The palisade fence can serve as extended wall fence with post fixed on the wall.

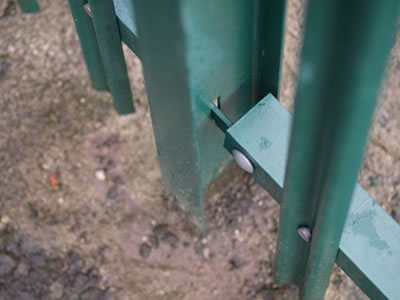

The green powder coated RSJ beam palisade post is fixed in the ground.
PPO-6: In garden and lawn, the palisade fence post can be fixed in the ground.

For different applications, the length that embedded in the ground is different, the following is the specifications:

Palisade fence type Fence height above ground (m) Post embedded length (mm)
General Palisade Fence 1.5 525
General Palisade Fence 1.8 525
General Palisade Fence 2.0 625
General Palisade Fence 2.1 625
General Palisade Fence 2.4 725
High Security Palisade Fence 3.0 925
High Security Palisade Fence 3.6 1125

Package:
We can provide many ways to pack the palisade posts, such as metal pallets, plastic film, wooden pallets and so on.

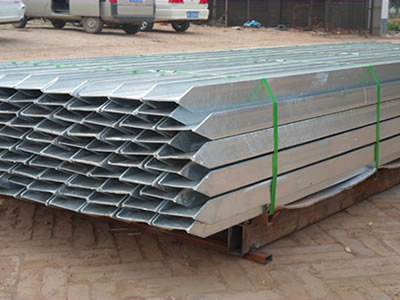

A bundle of RSJ beam palisade posts are packed with metal pallet.
PPO-7: The palisade post can be packaged with metal pallet, wooden pallet and plastic film.
